For the LS-ADAT outputs, the default routing for LS-ADAT Out 1 comes from Lynx Mixer output channels 9 through 16, which in turn come from Play devices 5 through 8. The default routing for LS-ADAT Out 2 comes from Lynx Mixer output channels 1 through 8, which in turn come from Play devices 1 through 4. This orientation can be altered so that audio sent to ADAT Out 1 is sent from Lynx Mixer outputs 1 through 8 (Play devices 1 through 4), and ADAT Out Port 2 from Lynx Mixer outputs 9 through 16 (Play devices 5 through 8), by choosing “1-8/9-16” from the Output Select section of the LStream window in the Lynx Mixer. The default setting is “9-16/1-8”.

For the LynxTWO/L22, Lynx Mixer output channels 9 through 16 have no physical outputs on-board, so when you route audio from an application it will only be sent to the LS-ADAT output. Lynx Mixer output channels 1 through 8 already route to physical outputs on-board, so the LS-ADAT outputs will run in parallel with these analog and digital outputs. For example, if audio is sent to Play 1 from an audio application, this signal will be routed to the LS-ADAT Out 2 Channels 1 and 2, as well as Analog Out 1 and 2 on the LynxTWO/L22.

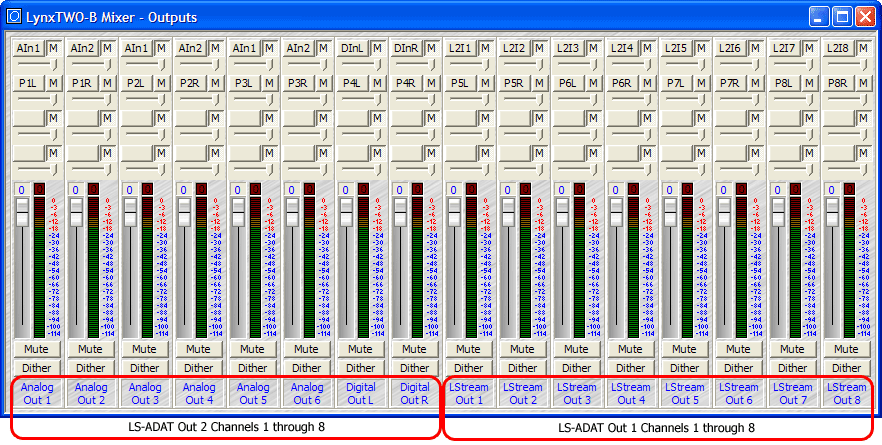

The graphic above shows the default routing of LS-ADAT channels to Lynx Mixer output channels with the “Output Select” switch set to “9-16/1-8”.

The graphic above shows the alternate routing of LS-ADAT channels to Lynx Mixer output channels with the “Output Select” switch set to “1-8/9-16”.
