In addition to the global routing available with the Aurora front panel controls, per channel routing is available with the Aurora Remote Control software. Here you can assign up to two sources per output. For instance, Digital In 5 and Analog In 1 can both be monitored through Digital Out 5 at the same time.

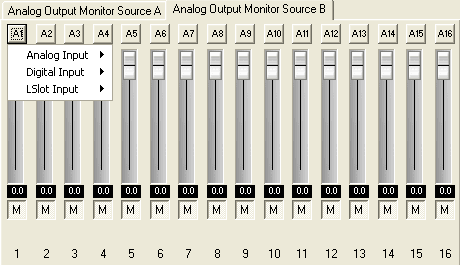

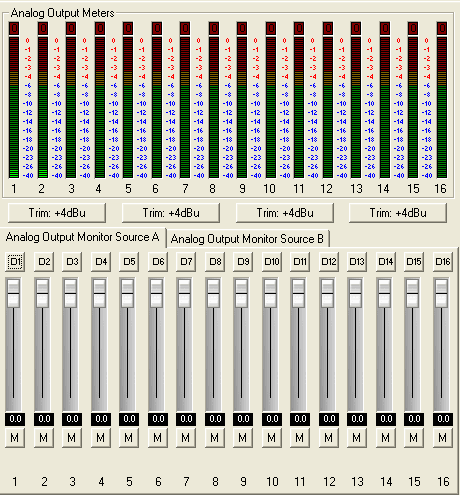

In the Aurora Remote Control Software, monitor sources can be assigned independently for the Analog Outputs and Digital Outputs. From the Digital I/O and Settings page, set TO ANALOG OUT and/or TO DIGITAL OUT to "Remote" in order for any custom routing to be active. When the Analog I/O page is selected, in the lower right quadrant there are tabs for Analog Output Monitor Source A and Analog Output Monitor Source B.

Remember to insure that new sources are unmuted - mute is active when the M at the bottom of a channel strip has a light-colored background. The Source A and Source B selections can be used simultaneously for 2 monitor sources per output.

This same process can be used to assign sources to the Digital Outputs as well, which is done from the Digital I/O and Settings page.
