The Lynx Outputs Mixer allows routing of up to 4 input sources to any output.

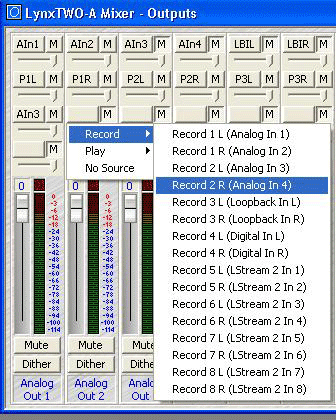

As pictured, there are four Output Monitor Source buttons above the faders on each output channel of the Lynx Outputs Mixer. A mouse click on one of these buttons launches a menu of record and playback sources. Selecting record sources causes input signals to be routed to the output.

By assigning record sources to each of the four Output Monitor Source select positions in an output’s channel strip, four input sources can be directly monitored through a single output.
